Kap-It Risers
Kap-It Risers allow anyone to raise a sprinkler head from the top instead of from the bottom by extending the stem of a standard riser. The new snap-on top protects the stem extension while leaving all of the manufacturer's original parts completely intact. Kap-It Risers are designed to still allow regular access to the head itself by maintaining the ability to unscrew the top of the canister with the Kap-It, even when multiple are stacked. Sold by Rachio, ships separately from Kap-It.

How does Kap-It work?

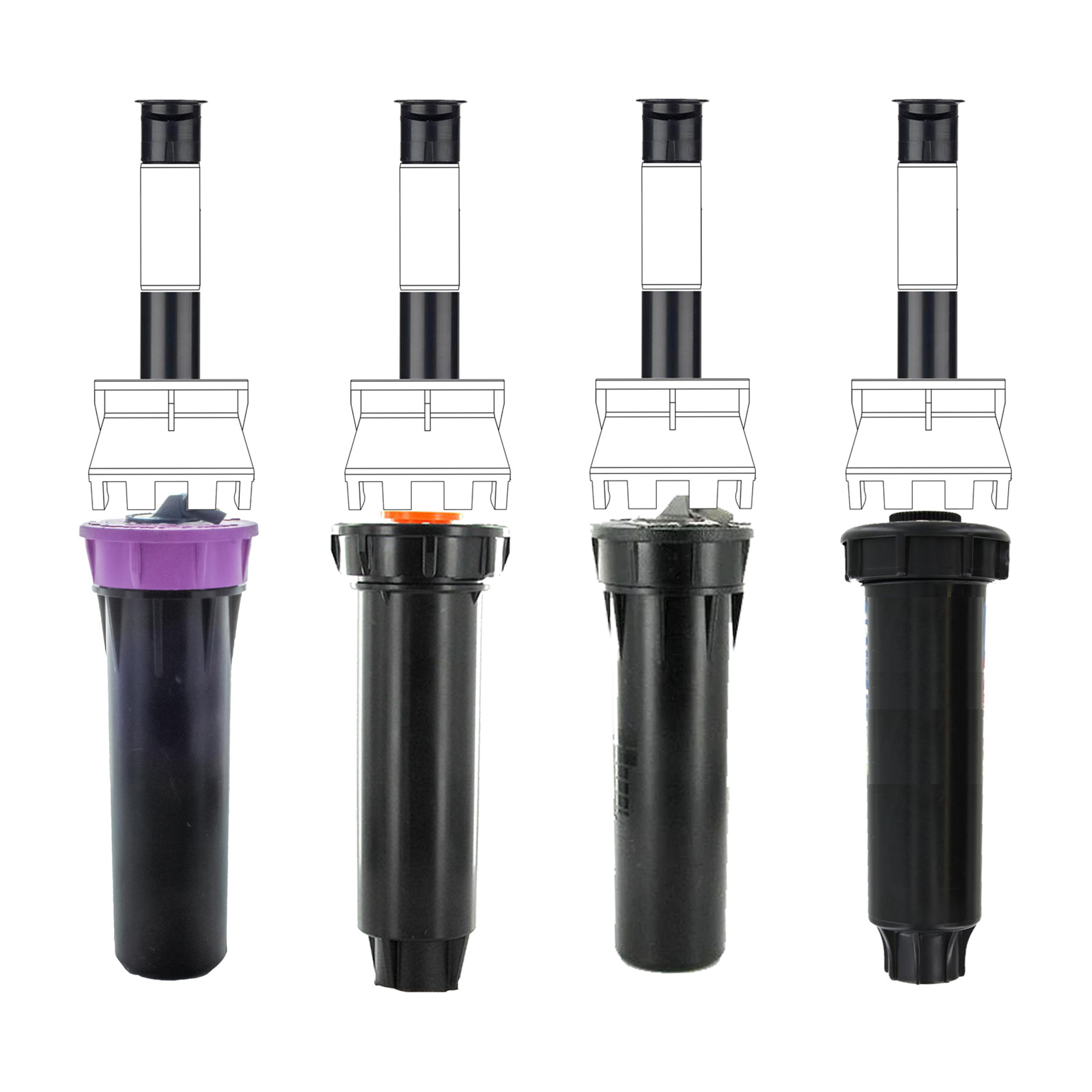

A Kap-It Riser kit comes with a 1.5-inch riser tube and cap. Simply pull the existing spray head up or run the zone to pop it up and hold on to it. Unscrew the nozzle and screw the riser tube in. Push the cap over the tube and click it on to the existing spray body. Then, screw the nozzle on to the riser tube and you're done!
Kap-It Risers FAQ
Purple sprinkler heads typically indicate the use of recycled and/or non-potable water. If your sprinkler system uses treated municipal water then you should purchase the black sprinkler heads.
If the pop-up has a flat head, Kap-It will usually fit. Kap-It fits: Hunter Pro Spray, Rain Bird 1800 and 1804, K-Rain Pro-S and others. Please note: Kap-It Risers are NOT compatible with most Toro pop-ups.
Yes, you can stack up to three Kap-It caps and risers on a spray head body (up to 4.5 inches of additional height). But one Kap-It (1.5 inches of additional height) is sufficient in most situations.
Yes, while popped-up, ratched the stem clockwise until the radius is set.
Insert the riser into the head, screw on to the threads and pull it back up, add the cap like normal and add the nozzle to complete the installation.
Yes, make sure the sprinkler head is dirt-free with about a half inch of clearance to attach the cap.
Yes, as long as the water is clear, snap on the Kap-It and listen or feel for the click to know it's secure.
Hand tightening is sufficient.
Contact Kap-It at info@kjketterlingenterprises.com.
